材料：采用不銹鋼304、316材質，各種長度皆可制作，特殊規(guī)格按客戶供樣制作；
特性：耐酸、耐腐蝕、抗張強度高，使用簡單，快捷等優(yōu)勢；
溫度：工作范圍-60℃~550℃。

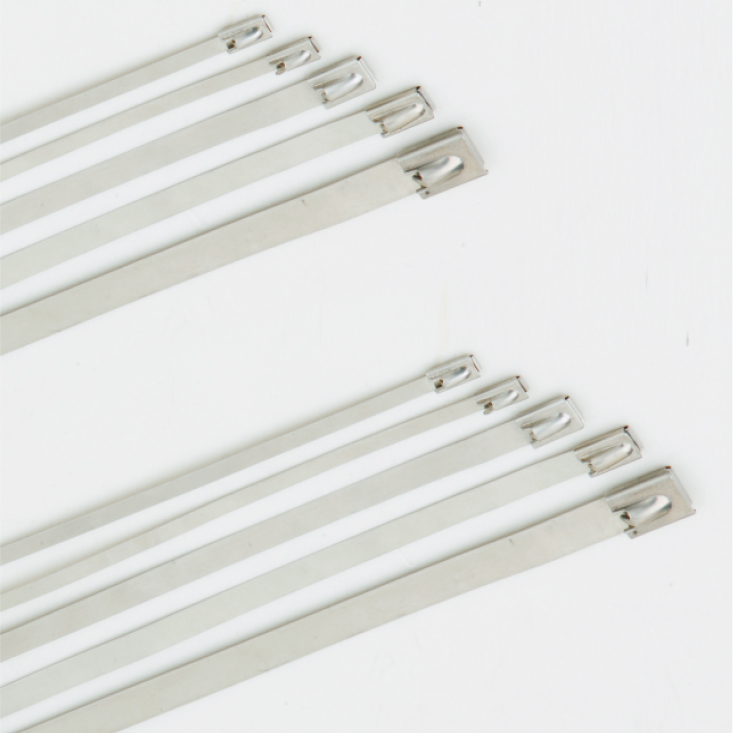

Materials:stainless steel 304 and 316 materials,all kinds of length can be produced,special specifications
according to customer samples;
Characteristics:acid resistance,corrosion resistance,tensile strength,easy to use,fast and other advantages;
Temperature:working range-60~550.
|
規(guī)格型號 Part number |
長度Approx. length mm(inch) |
寬度Approx. width mm(inch) |
厚度 Thickness |
捆綁直徑Max,bundle dia.mm(inch) |
拉力 (lbs) |
|---|---|---|---|---|---|
| WF-3.5×100 | 100(3.9) | 3.8(0.15) | 0.25 | 25(1.00) | 600 |
| WF-3.5×150 | 150(5.9) | 0.25 | 37(1.46) | ||
| WF-3.5×200 | 200(7.87) | 0.25 | 50(1.97) | ||
| WF-3.5×250 | 250(9.84) | 0.25 | 63(2.48) | ||
| WF-3.5×300 | 300(11.8) | 0.25 | 76(2.99) | ||
| WF-3.5×350 | 350(13.78) | 0.25 | 89(3.5) | ||
| WF-3.5×400 | 400(15.75) | 0.25 | 102(4.02) | ||
| WF-3.5×450 | 450(17.72) | 0.25 | 115(4.53) | ||
| WF-4.6×150 | 150(5.9) | 4.6(0.181) | 0.25 | 37(1.46) | 600 |
| WF-4.6×200 | 200(7.87) | 0.25 | 50(1.97) | ||
| WF-4.6×250 | 250(9.84) | 0.25 | 63(2.48) | ||
| WF-4.6×300 | 300(11.8) | 0.25 | 76(2.99) | ||
| WF-4.6×350 | 350(13.78) | 0.25 | 89(3.5) | ||
| WF-4.6×400 | 400(15.75) | 0.25 | 102(4.02) | ||
| WF-4.6×450 | 450(17.72) | 0.25 | 115(4.53) | ||
| WF-4.6×500 | 500(19.69) | 0.25 | 128(5.04) | ||
| WF-4.6×550 | 550(21.65) | 0.25 | 141(5.55) | ||
| WF-4.6×600 | 600(23.62) | 0.25 | 154(6.06) | ||
| WF-7.9×150 | 150(5.9) | 7.9(0.311) | 0.25 | 37(1.46) | 800 |
| WF-7.9×200 | 200(7.87) | 0.25 | 50(1.97) | ||
| WF-7.9×250 | 250(9.4) | 0.25 | 63(2.48) | ||
| WF-7.9×300 | 300(11.8) | 0.25 | 76(2.99) | ||
| WF-7.9×350 | 350(13.78) | 0.25 | 89(3.5) | ||
| WF-7.9×400 | 400(15.75) | 0.25 | 102(4.02) | ||
| WF-7.9×450 | 450(17.72) | 0.25 | 115(4.53) | ||
| WF-7.9×500 | 500(19.69) | 0.25 | 128(5.04) | ||
| WF-7.9×550 | 550(21.65) | 0.25 | 141(5.55) | ||
| WF-7.9×600 | 600(23.62) | 0.25 | 154(6.06) | ||
| WF-7.9×650 | 650(25.59) | 0.25 | 167(6.57) | ||
| WF-7.9×700 | 700(27.56) | 0.25 | 180(7.09) | ||
| WF-7.9×750 | 750(29.63) | 0.25 | 191(7.52) | ||
| WF-7.9×800 | 800(31.5) | 0.25 | 193(7.59) | ||
| WF-10×200 | 200(7.87) | 10(0.394) | 0.25 | 50(1.97) | 1000 |
| WF-10×300 | 300(11.8) | 0.25 | 76(2.99) | ||
| WF-10×400 | 400(15.75) | 0.25 | 102(4.02) | ||
| WF-10×500 | 500(19.69) | 0.25 | 128(5.04) | ||
| WF-10×1000 | 1000(39.37) | 0.25 | 286(8.11) | ||
| WF-10×1200 | 1200(47.24) | 0.25 | 350(13.7) |
